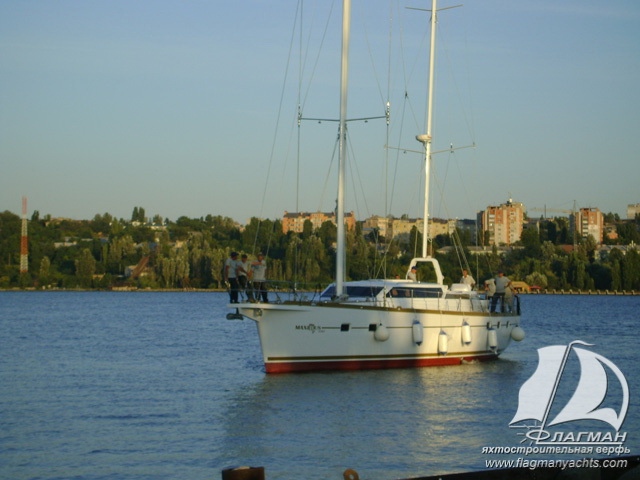

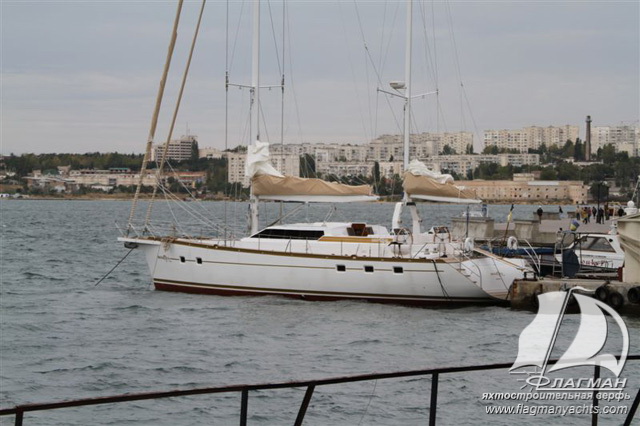

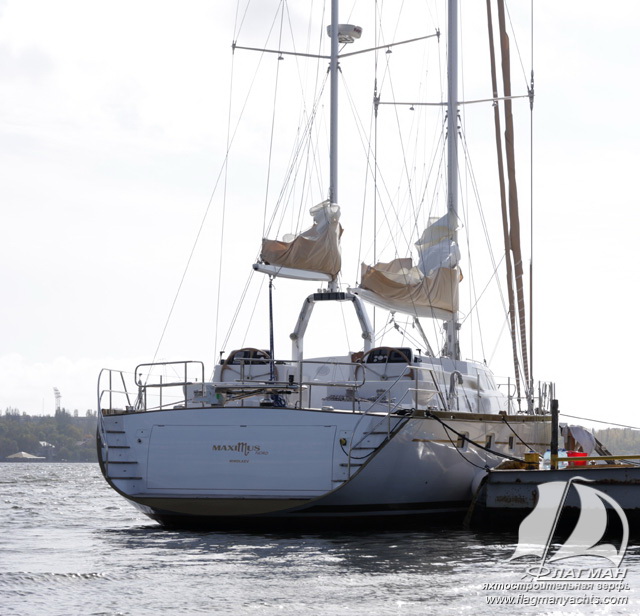

Cruise sail-motor yacht Class A3 (project name NKI111 «Saken») designed for recreation and tourism.

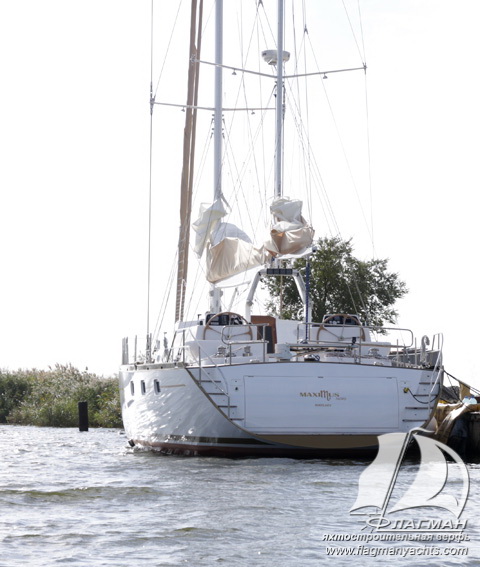

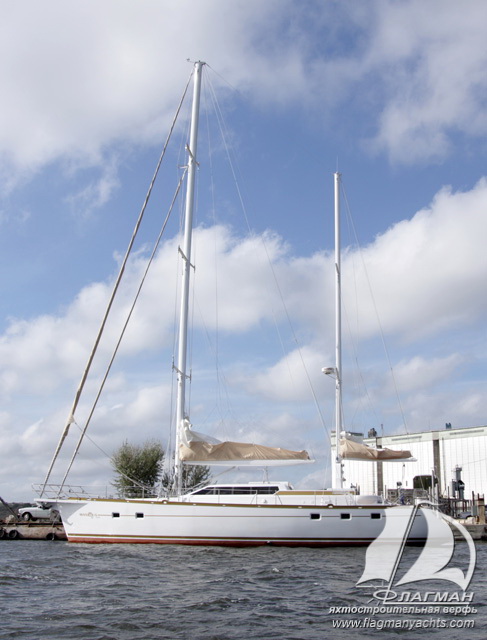

The yacht was designed by the scheme of Bermuda advanced rigging and two aft cockpits for passenger and steering wheels.
Steering cockpit has two operating stations, spaced along the sides. Hydraulic steering gear.
Sail rigging equipped with staysail and genoa furlers, Batten car and Lazy-Jack systems for mainsail and mizen sail.
There is additional equipment: Gen-Set, desalination, air-conditioning system.
Fresh water tank is a 1.2 cub.mt / 317 US Gallons, fuel is 2.6 cub.mt/ 686 US Gallons, which provides a cruising range of 800 miles by diesel. Average speed 12 knots.

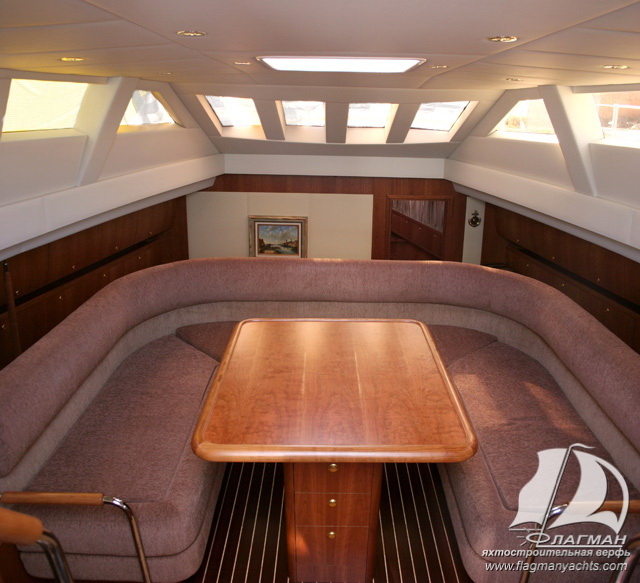

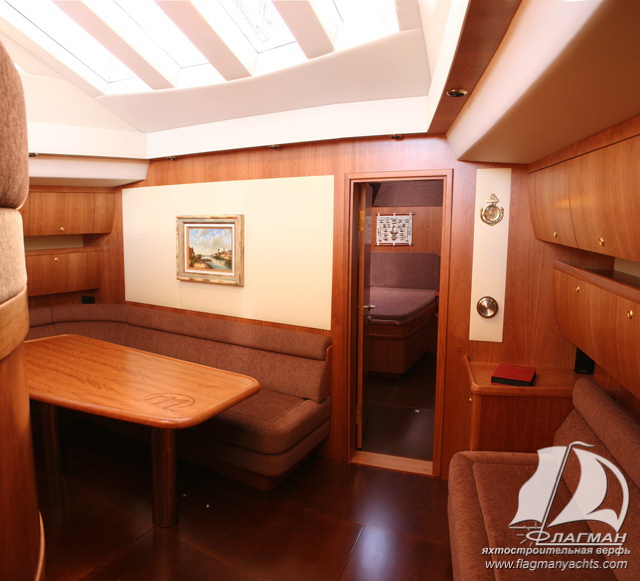

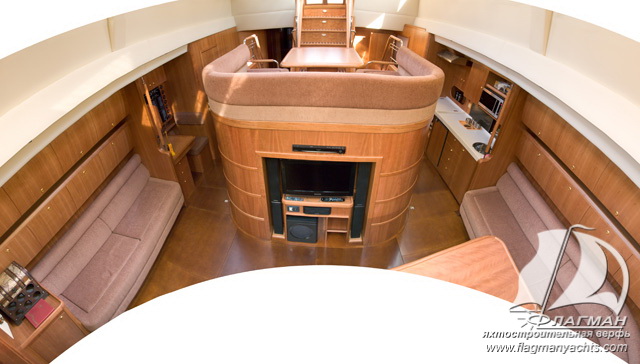

Salon of the vessel made in two-level which provides additional comfort and free spaces for passengers.
|Length waterline, m:||18,26|
|Maximum width, m:||6,0|
|Width waterline, m||:|
|Hull Depth, m:|
|Engine power, hp:||310|
|Sail area, sq.m:||168,0|
